| Gear Ratio | 30.4:1 |
|---|---|
| Unit Weight | 350 lb (158 kg) Short / 380 lb (172 kg) Long |
| Standard Motor | 11.9 CID |

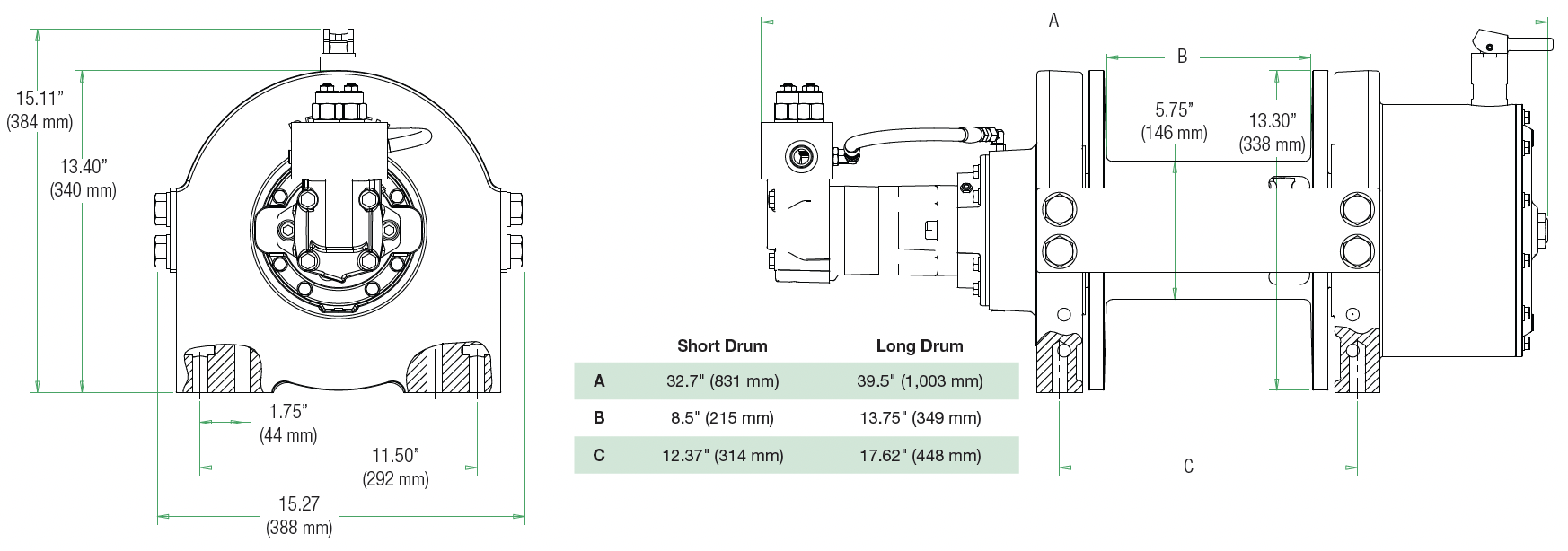

| Drum Size | 5.75” (146 mm) Barrel x 13.3” (338 mm) Flange x 8.5” (215 mm) Short or 13.75” (349 mm) Long Between Flanges |
| Rope Diameters | 5/8” (16 mm) |
| D/d Ratio (Wire Rope) | 9:1 |
| Drum Freespool | Manual or Air |
| Cable Management Options | Cable Roller, Tension Plate, Roller Fairlead |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | Layer 6 | |
| Line Pull* | 30,000 lb (13,6082 kg) | 25,080 lb (11,376 kg) | 21,540 lb (9,770 kg) | 18,880 lb (8,564 kg) | 16,810 lb (7,625 kg) | 15,140 lb (6,867 kg)** |
| Line Speed* | 28 fpm (8.7 mpm) | 34 fpm (10.2 mpm) | 39 fpm (11.8 mpm) | 44 fpm (13.3 mpm) | 49 fpm (14.9 mpm) | 55 fpm (16.8 mpm)** |
| Short Drum Capacity 5/8” (16 mm) | 20 ft (6.1 m) | 44 ft (13.4 m) | 73 ft (22.3 m) | 105 ft (32 m) | 141 ft (43 m) | 182 ft (55.5 m)** |
| Long Drum Capacity 5/8” (16 mm) | 33 ft (10.1 m) | 72 ft (21.9 m) | 118 ft (36 m) | 171 ft (52.1 m) | 230 ft (70.1 m) | 295 ft (89.9 m)** |
