| Gear Ratio | 13:1 |
|---|---|
| Unit Weight | 165 lb (74 kg) |
| Standard Motor | 8.0 CID |

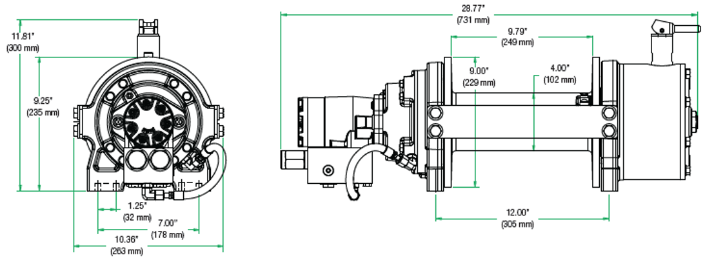

| Drum Size | 4” (101 mm) Barrel x 9” (228 mm) Flange x 9.79” (249 mm) Between Flanges |
| Rope Diameters | 7/16” (11 mm), 1/2” (13 mm) |
| D/d Ratio (Wire Rope) | 7/16”=9:1, 1/2”=8:1 |
| Drum Freespool | Manual or Air |
| Cable Management Options | Cable Roller, Tension Plate, Roller Fairlead |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | |
| Line Pull* | 12,000 lb (5,443 kg) | 10,020 lb (4,545 kg) | 8,600 lb (3,900 kg) | 7,530 lb (3,415 kg) | 6,700 lb (3,039 kg) |
| Line Speed* | 46 fpm (14 mpm) | 56 fpm (17.1 mpm) | 65 fpm (19.8 mpm) | 74 fpm (22.6 mpm) | 83 fpm (25.3 mpm) |
| Drum Capacity 7/16” (11 mm) 1/2” (13 mm) | 23 ft (7 m) 20 ft (6.1 m) | 51 ft (15.5 m) 46 ft (14 m) | 84 ft (25.6 m) 76 ft (23.2 m) | 121 ft (36.9 m) 110 ft (33.5 m) | 163 ft (49.7 m) 149 ft (45.4 m)** |
