| Gear Ratios | 50:1 |
|---|---|
| Approx. Unit Weight | 965 to 1,530 lb (438 to 694 kg) |
| Standard Motors | P065 (9.5 CID Piston), V065/032 (Variable Displacement Piston) |

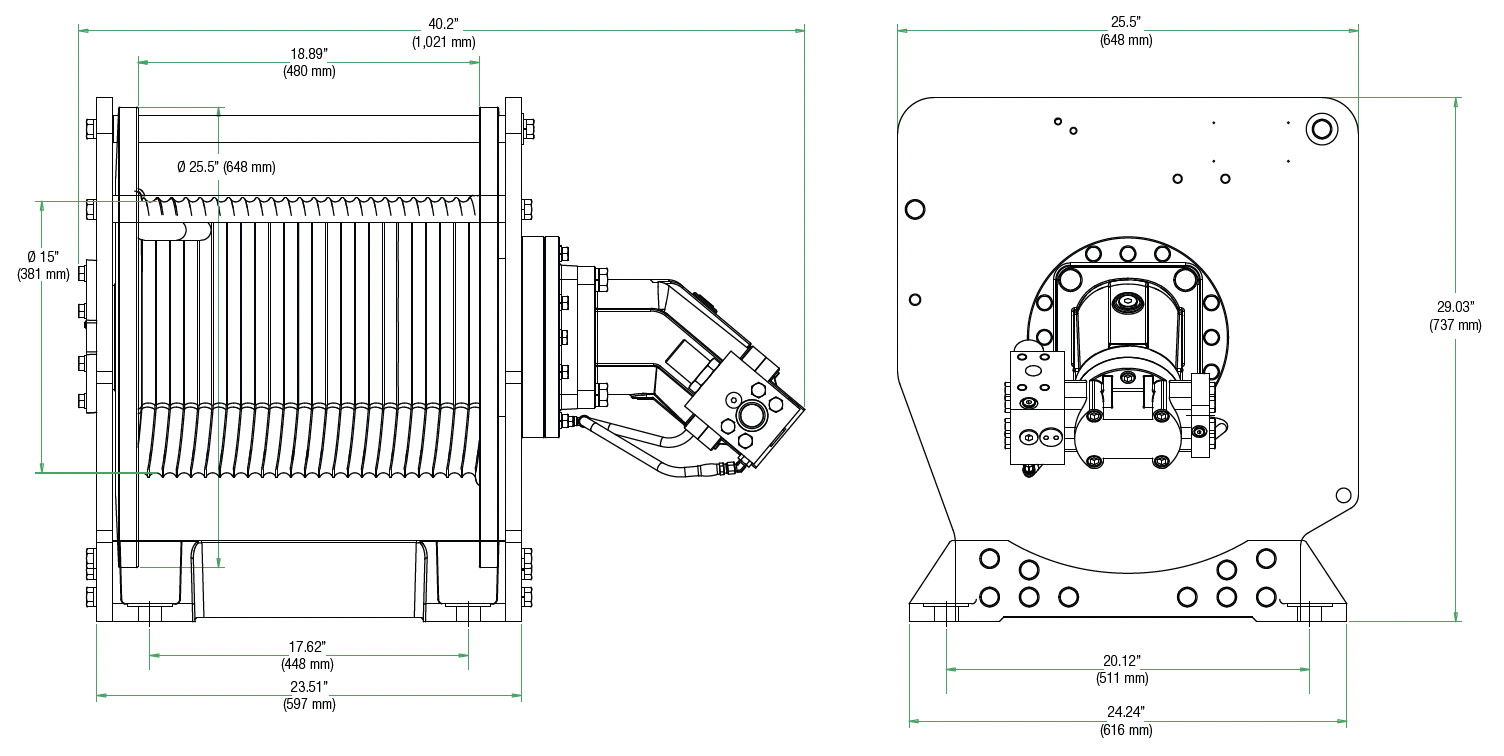

| Drum Sizes | 15” (381 mm) Barrel x 25.5” (648 mm) Flange x 18.89” (480 mm) Between Flanges |
| Rope Diameters | 3/4” (19 mm) |
| Cable Management Options | Grooved Drum, Tension Roller |
| API 2c Compliant | No |
| Layer 1 | Layer 2 | Layer 3 | Layer 4 | Layer 5 | |
| Line Pull* LOW HIGH | 20,250 lb (9,205 kg) 8,420 lb (3,827 kg) | 18,490 lb (8,405 kg) 7,690 lb (3,495 kg) | 17,101 lb (7,732 kg) 7,070 lb (3,214 kg) | 15,750 lb (7,159 kg) 6,550 lb (2,977 kg) | |
| Line Speed* LOW HIGH | 138 fpm (42 mpm) 282 fpm (86 mpm) | 151 fpm (46 mpm) 309 fpm (94 mpm) | 164 fpm (50 mpm) 336 fpm (102 mpm) | 178 fpm (54 mpm) 363 fpm (111 mpm) | |
| Drum Capacity** 3/4” (19 mm) | 101 ft (30.8 m) | 212 ft (64.6 m) | 332 ft (101.2 m) | 462 ft (140.8 m) | 602 ft (183.5 m) |
