PD12C

Planetary Hoists

Rated Line Pull: 12,000 lb (5,443 kg)
Gear Ratios 59:1, 41:1, 29:1, 21:1
Approx. Unit Weight 375 to 1,030 lb (170 to 467 kg)
Standard Motors 080 (8.0 CID), 064 (6.38 CID), 051 (5.1 CID), 039 (3.92 CID), 034 (3.43 CID), 029 (2.94 CID), 049,024 (2-Speed)
Drum Sizes 01 — 9.75” (248 mm) B x 14” (356 mm) F x 13.75” (349 mm) BF 02/02G — 9.75” (248 mm) B x 16.38” (416 mm) F x 13.75” (349 mm) BF 04 — 10.63” (270 mm) B x 20” (508 mm) F x 13.5” (343 mm) BF 05 — 10.63” (270 mm) B x 16.5” (419 mm) F x 13.5” (343 mm) BF
Rope Diameters 3/8” (10 mm), 7/16” (11 mm), 1/2” (13 mm), 9/16” (14 mm)
Freefall Options Freefall (FF), Controlled Freefall (CF)
Cable Management Options Grooved Drum, Tension Roller
API 2c Compliant Yes (optional)
Specifications are representative of common configuration. Consult factory for additional options.

Performance

Layer 1 Layer 2 Layer 3 Layer 4
Line Pull* 12,000 lb (5,443 kg) 10,930 lb (4,958 kg) 10,040 lb (4,554 kg) 9,280 lb (4,209 kg)
Line Speed* 160 fpm (48.8 mpm) 176 fpm (53.6 mpm) 190 fpm (57.9 mpm) 207 fpm (63.1 mpm)
Drum Capacity** 3/8” (10 mm) 7/16” (11 mm) 1/2” (13 mm) 9/16” (14 mm) 97 ft (29.6 m) 83 ft (25.3 m) 73 ft (22.3 m) 65 ft (19.8 m) 201 ft (61.3 m) 174 ft (53 m) 154 ft (46.9 m) 139 ft (42.4 m) 313 ft (95.4 m) 273 ft (83.2 m) 242 ft (73.8 m) 219 ft (66.8 m) 431 ft (131.4 m) 378 ft (115.2 m) 338 ft (103 m) 307 ft (93.6 m)
*Based on pressure of 2,400 psi (166 bar), 65 gpm (246 lpm), 1/2” (13 mm) rope and 3.92 CID (64 cc) motor. Actual performance will vary dependent on hydraulic system, motor, drum and cable sizes.
**Capacity per ANSI/ASME.

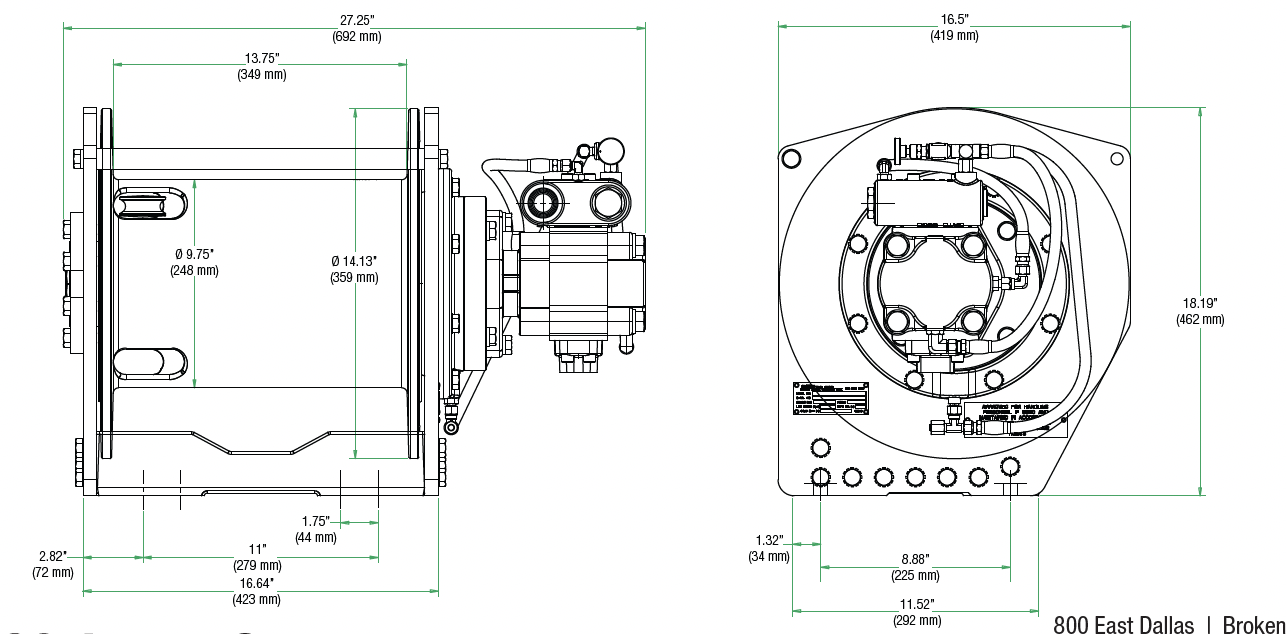

Dimensions
